Description
Purpose and Benefits

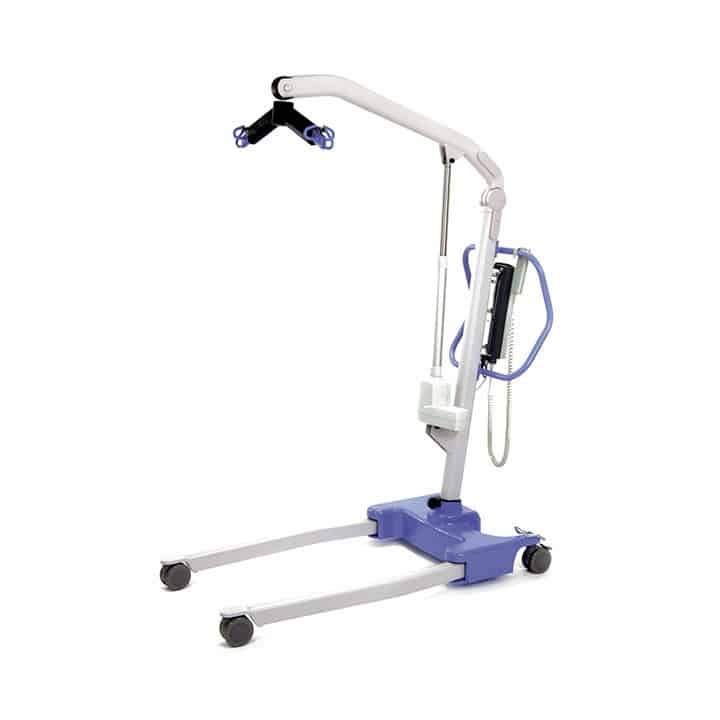

The Oxford Presence is a heavy-duty mobile patient lift, competent enough to handle almost any patient-handling task. Its incredible lifting range ensures it can cope easily with the most critical of transfers, from the floor to high level surfaces.
Features
• Safe working load 227kg
• Outstanding lifting range (440mm – 1910mm)
• SmartTM Monitor diagnostic and service controls as standard
• Interchangeable spreader bar and cradle options
• Ergonomic design considerations and interaction points
• Powered leg positioning for excellent access around furniture
• Low leg model available especially suited to low bed frames
• Powered cradle and digital weigh-scale options 5 yr warranty on aluminium Frame. 2 yr warranty on mechanical and electrical components. Battery and casters 90 day warranty
Specifications
| SAFE WORKING LOAD | 227 kgs |
| MAXIMUM OVERALL LENGTH | 1460 mm |
| MINIMUM OVERALL LENGTH | 1400 mm |
| MAXIMUM OVERALL HEIGHT | 2065 mm |
| MINIMUM OVERALL HEIGHT | 1460 mm |
| SPREADER BAR MAXIMUM HEIGHT | 1910 mm |
| SPREADER BAR MINIMUM HEIGHT | 430 mm |
| HEIGHT AT MAXIMUM REACH | 1310 mm |
| REACH AT MAXIMUM HEIGHT | 650 mm |
| REACH AT MINIMUM HEIGHT | 400 mm |
| MAXIMUM REACH | 930 mm |
| TURNING RADIUS | 1630 mm |
| LEGS OPEN – INTERNAL WIDTH | 1020 mm |
| LEGS CLOSED – EXTERNAL WIDTH | 670 mm |
| FRONT TWIN CASTERS | 100 mm |
| REAR BRAKED CASTERS | 100 mm |
| OVERALL HEIGHT OF LEGS | 120 mm |
| WITH LOW LEG OPTION | 60 mm |
| GROUND CLEARANCE | 35 mm |
