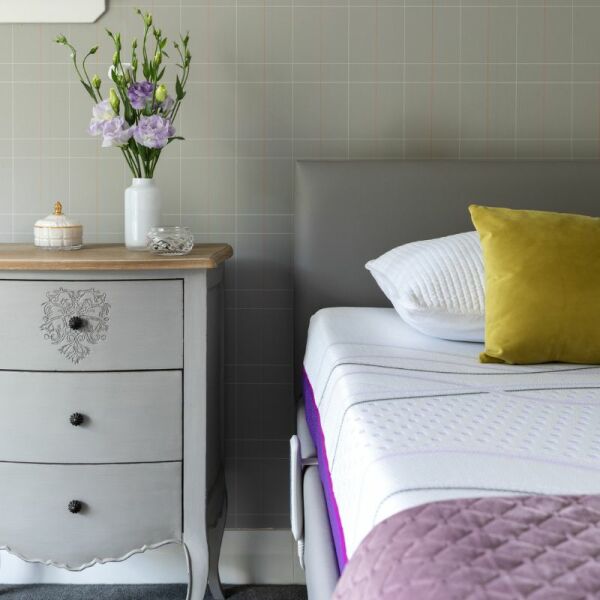

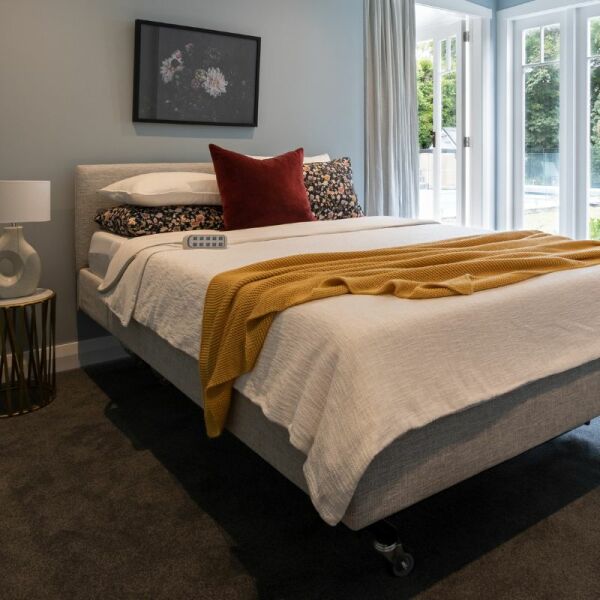

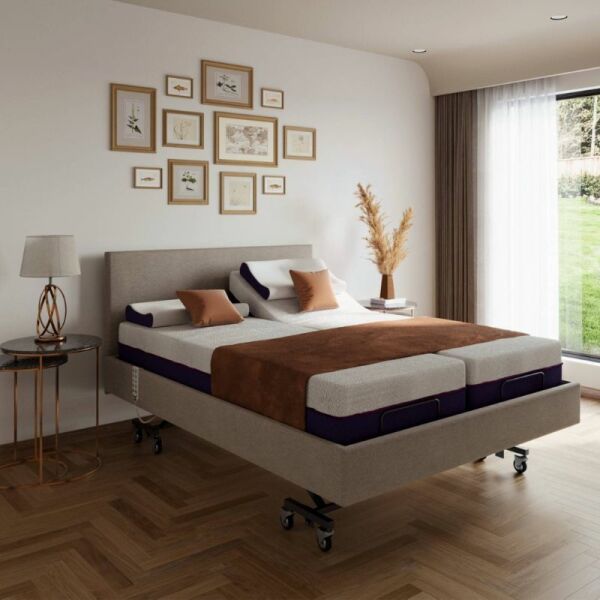

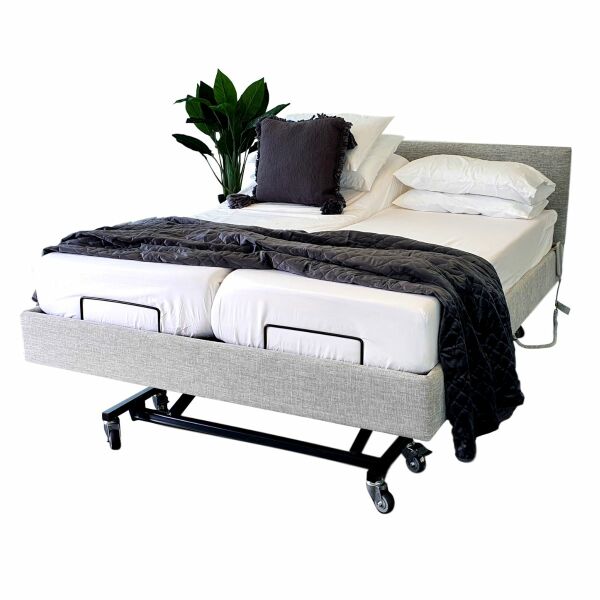

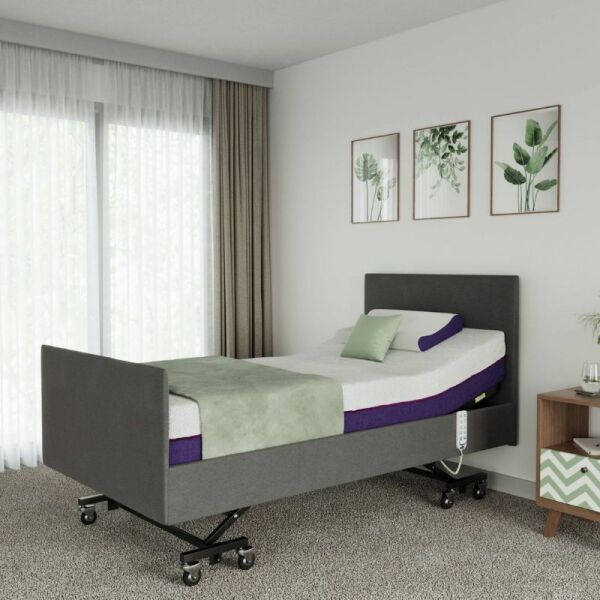

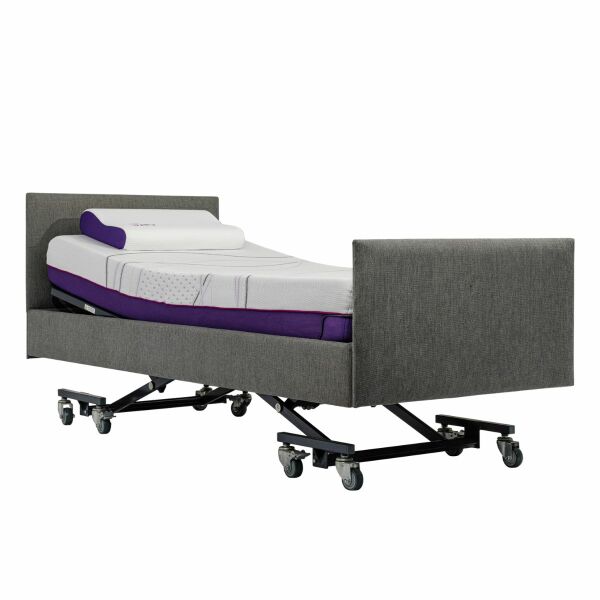

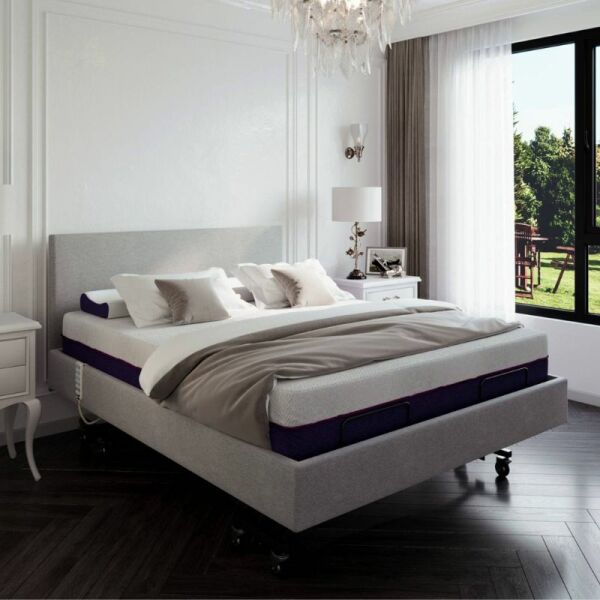

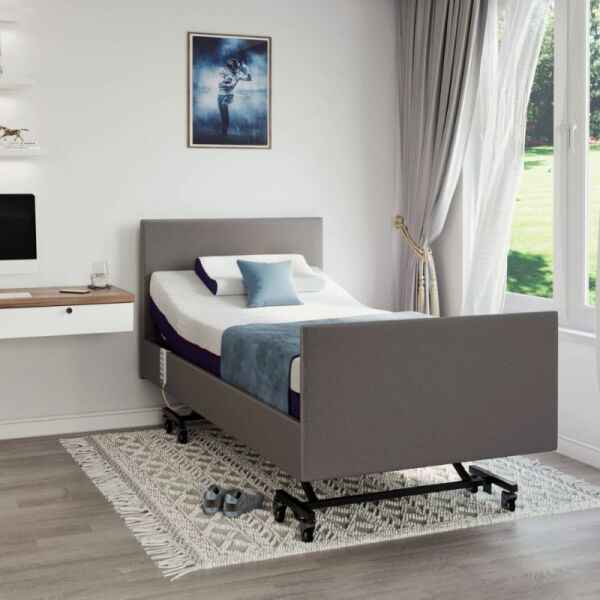

The IC333 is a electrically operated bed that has been designed for both home care and healthcare facilities. This bed has adjustable back rest, knee break, is height adjustable and also offers the user trendelenburg tilt. The IC333 also uses a flexible slat systems that support the mattress and comes with an upholstered surround. Available in Onyx or Stone fabric.

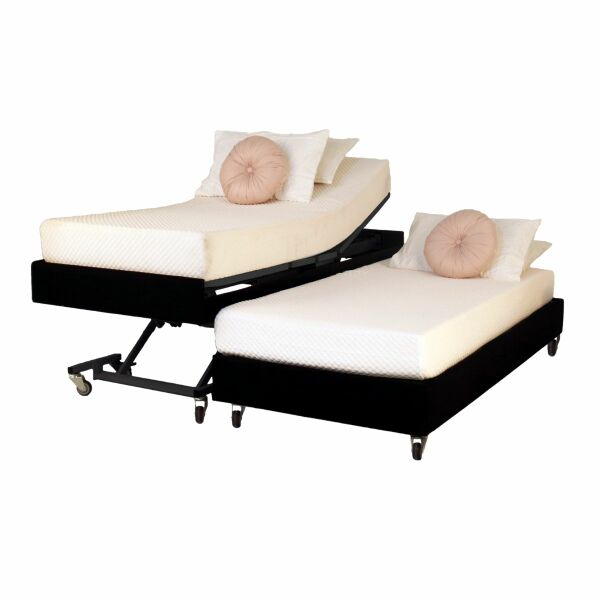

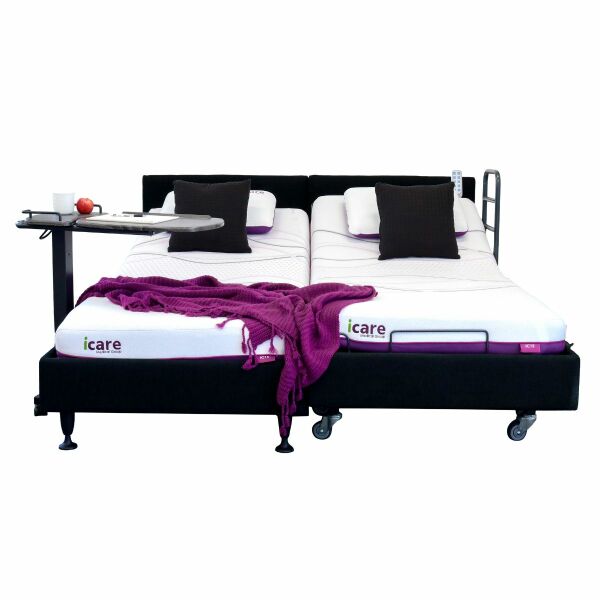

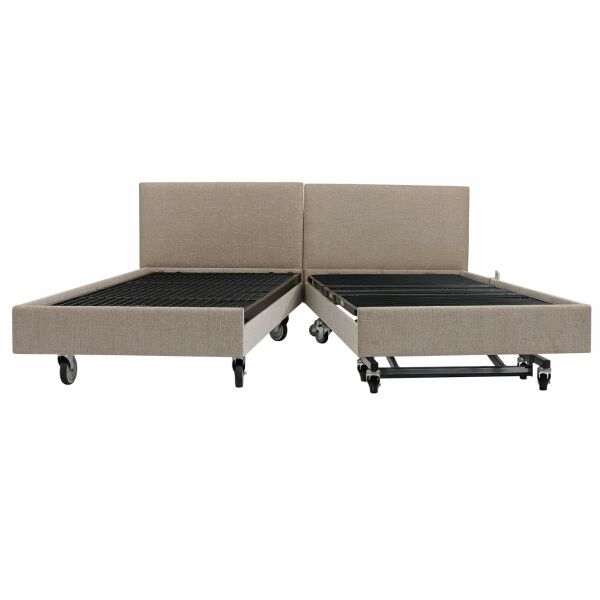

Companion Beds and head boards also available.
- Maximum load rated 200kg
- Upholstered head board to match IC333
- Back rest and Knee rest
- Trendelenburg tilt 15 degrees
- Heavy duty locking castors
- Choice of fabrics for upholstered
- Dual lift motors totalling 12,000 Newtons lifting power
- High side rail
- Low side rail
- Bed sticks
- Full length fold down bed rail

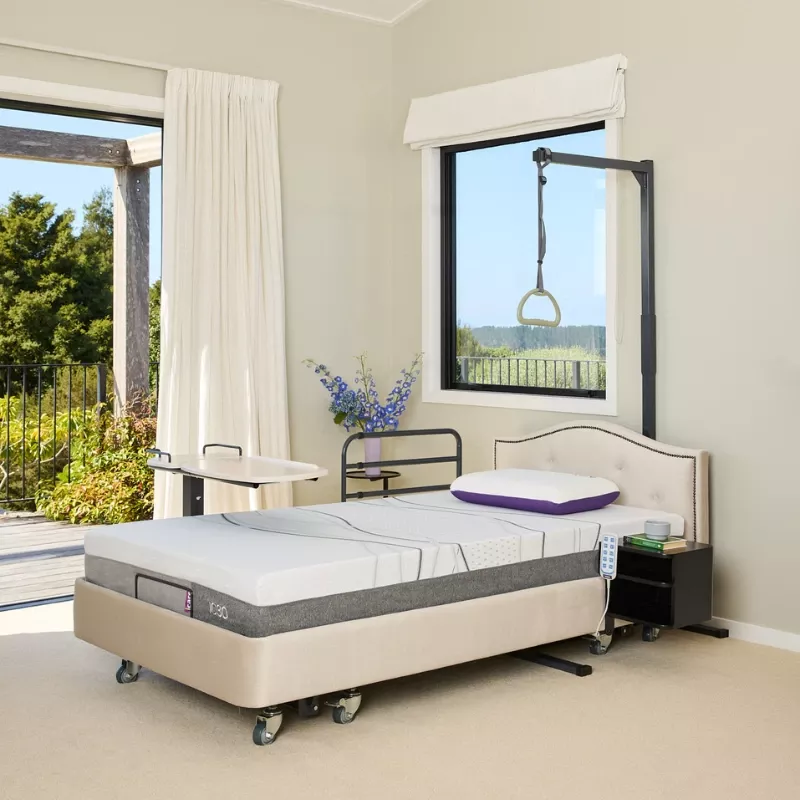

- Over bed table
- Over bed pole
Basic Specifications (See Specifications Tab Above for More)
- Bed Length: 2080mm
- Bed Width: 960mm
- Bed Height: 220-660mm
- SWL: 200kg
Mattress Surface Size: 2030 x 900
Base Size: 2150 x 960
Mattress Surface Size: 2030 x 1070
Base Size: 2150 x 1120
Mattress Surface Size: 2030 x 1350
Base Size: 2150 x 1400
One hand control
Mattress Surface Size: 2030 x 1500
Base Size: 2150 x 1580
One hand control
» Safe working load – 200kg on long single and king single sizes and 300kg for double and queen sizes. The safe working load includes any model of Icare mattresses.
» Hand Piece – Backlit for night time use. Easy press buttons. Wired stretch cord. Hook attachment for hanging to side of bed. Wipeable.
» Fabric – Hard wearing commercial grade fabric. Onyx range (BLACK) 82% Polyester, 18% Olefin. Stone range (GREY) 70% Polyester, 30% Acrylic.
» Mattress Surface – Strong metal mesh under mattress allowing increased airflow
» Actuators – 1x 6000 newton – 24 watt head adjust actuator. 1x 6000 newton – 24 watt knee adjust actuator. 2x 6000 newton – 24 watt height adjust actuators (2x 8000 newton on double and queen sizes)
» No pull motors for added safety.
» Wheels – 8x heavy duty swivel castors with one lockable castor on each corner.
» Head lift angle 62º and knee break angle 42º
» Max height – 66cm from floor to top of base
» Min height – 22cm from floor to top of base
