Purpose and Benefits

A flexible gantry system

With a Molift freestanding unit, we offer a system that is easy to install without additional fixtures on ceiling or walls. It is ideally suited to temporary lift applications in hospitals, nursing homes, or private homes.

Lightweight construction

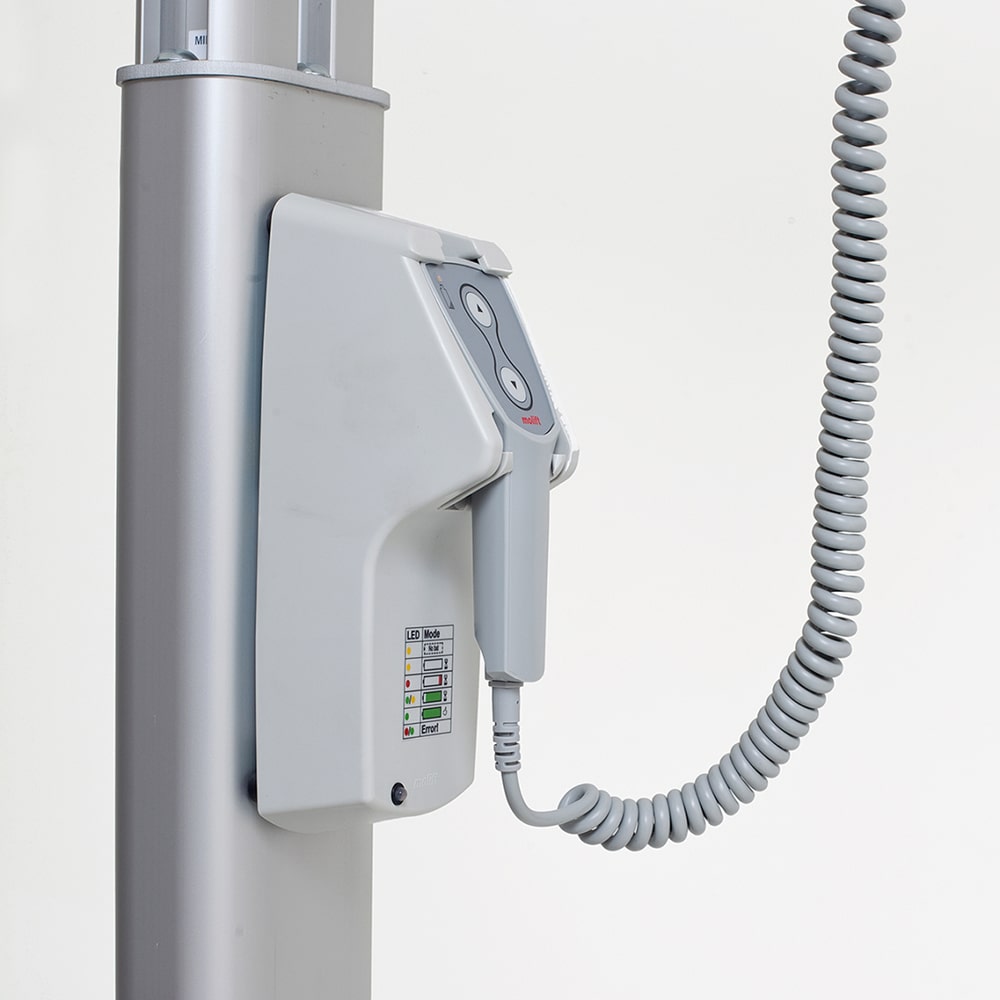

The Molift Rail System Duo has a lightweight aluminum construction and a functional design which makes the gantry system easy to install, dismantle and move elsewhere. In combination with Molift Air or Molift Nomad lift motor and a sling, Molift Rail System Duo solves all overhead lifting situations, whatever the environment. With a lifting capacity of 300 kg (660 Ibs), it is ideal for lifting and transferring a person from or to; bed, floor, chair, wheelchair, toilet, etc.

Suitable for all bed and room sizes

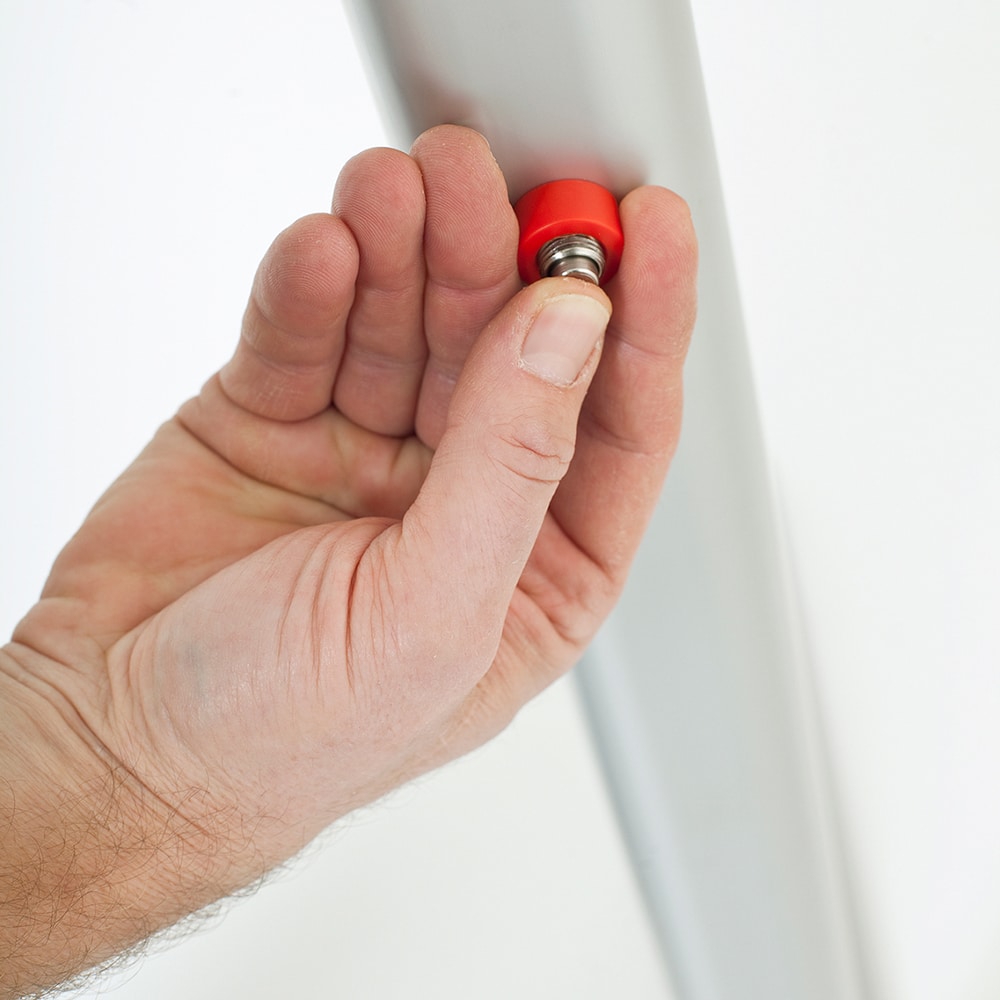

This 2 post gantry system has a rail length between 200 cm (78,7″) and 350 cm (137,8″) and has 4 steps adjustable height up to 255 cm (100,4″), making this freestanding hoist unit suitable for all bed and room sizes.


Available rail lengths200 – 250 – 300 – 350 cm
Height225-255 cm
Depth120 cm
Maximum internal space350 x 240 cm
Safe Working Load SWL300 kg
MaterialAnodized aluminum, plastic
Total Weight38-44,3 kg
Transport height170 cm
WeightPost, complete: 14.8 kg
Boom: 4.2 kg/m
Foot: 3.8 kg
Post, without foot: 11 kg
