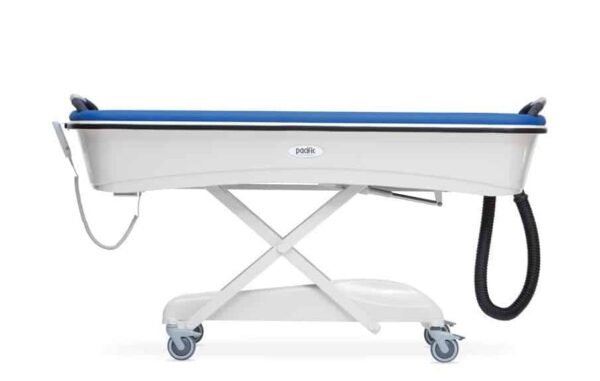

Pacific Shower Bathing Trolley

Description

Purpose & Benefits

Unique solution for safe patient showering, bathing and transfer. The versatile Pacific Shower-Bathing Trolley provides a safe environment for showering, bathing and transfer.

The soft, padded top is ideal for patients with delicate skin or disabilities.

The electric high-low and unique electric tub-side actuation provides an ergonomic working height for caregivers and ensures safer patient transfers.

The Pacific Shower-Bathing Trolley has been carefully designed to be intuitive and easy to use meaning minimal user training is required.

The one piece seamless design also makes it easy to clean.

Features

• Fully electric controls with battery backup
• Tub sides lower to become flush with patient platform
• High performance LINAK and TENTE components
• 200kg Safe Working Load
• 125mm corrosion resistant castors
• Safe 24V DC system with remote battery charger
• Soft, padded polyurethane tub
• Low battery warning light on handset
• Waterproof pillow
• Push handles at both ends
• Siderail (optional)

Specifications

Maximum SWL: 200kg
Trolley Mass: 100kg
Overall Dimensions: 2165 x 775mm
Tub Platform Dimension: 1825 x 480mm
Wheel Base: 1165mm, wheel track; 690mm
Castor Diameter: 125mm single wheel
Maximum Tub Depth (drain end): 210mm
Maximum Tub Depth (head end): 180mm
Power Source: Rechargeable battery, 24V DC, 2.9Ah
Battery Charger Input: 110 or 240V AC, 50-60Hz, 650mA (max)
Battery Charge Time: 6 hours
Number of Full Load Cycles: Approx. 30
Time To Raise or Lower Patient Platform: 30 seconds
Time to raise or lower Tub Sides: 22 seconds

Cleaning

View the approved cleaning products for mattress covers, upholstery tops, and shower trolley tub fabrics here.
