Allegro SONATA Lifter

Description

Purpose and Benefits

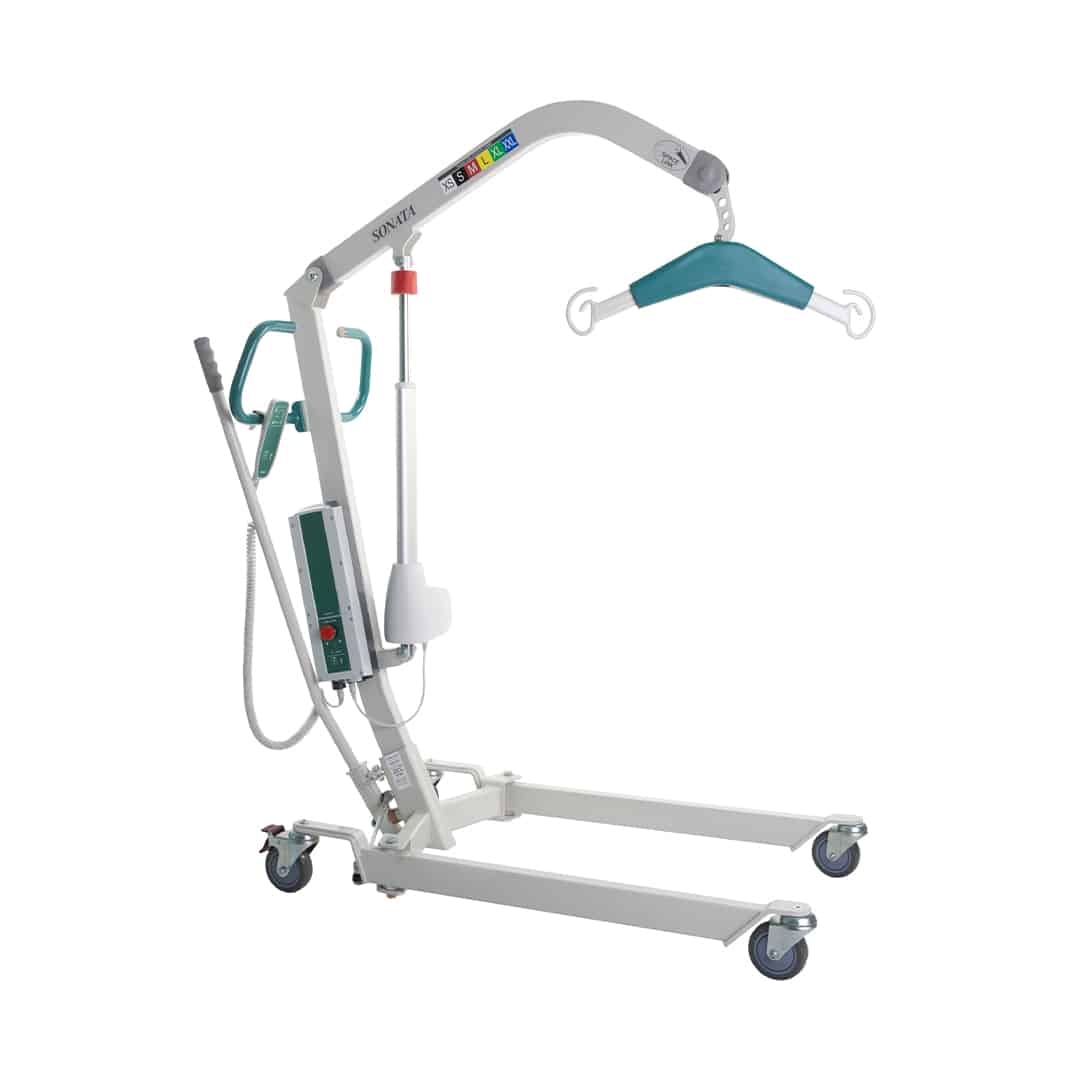

A lightweight compact mobile patient lifting hoist with innovative and ergonomic design.

The Sonata is an easy-to-use everyday lifter. With a safe working load of 150kg the Sonata offers an outstanding lift capacity in a small patient hoist.

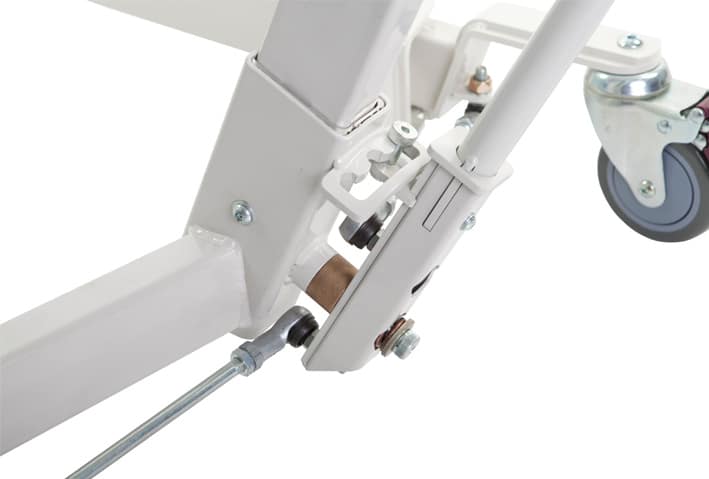

Electric Leg Spread – The Sonata ELS offers all the versatility of the original Sonata, with the added advantage of Electric Leg Spread. This allows for easy of lifter leg adjustment on carpeted surfaces and/or with the heavier client on board.

Features

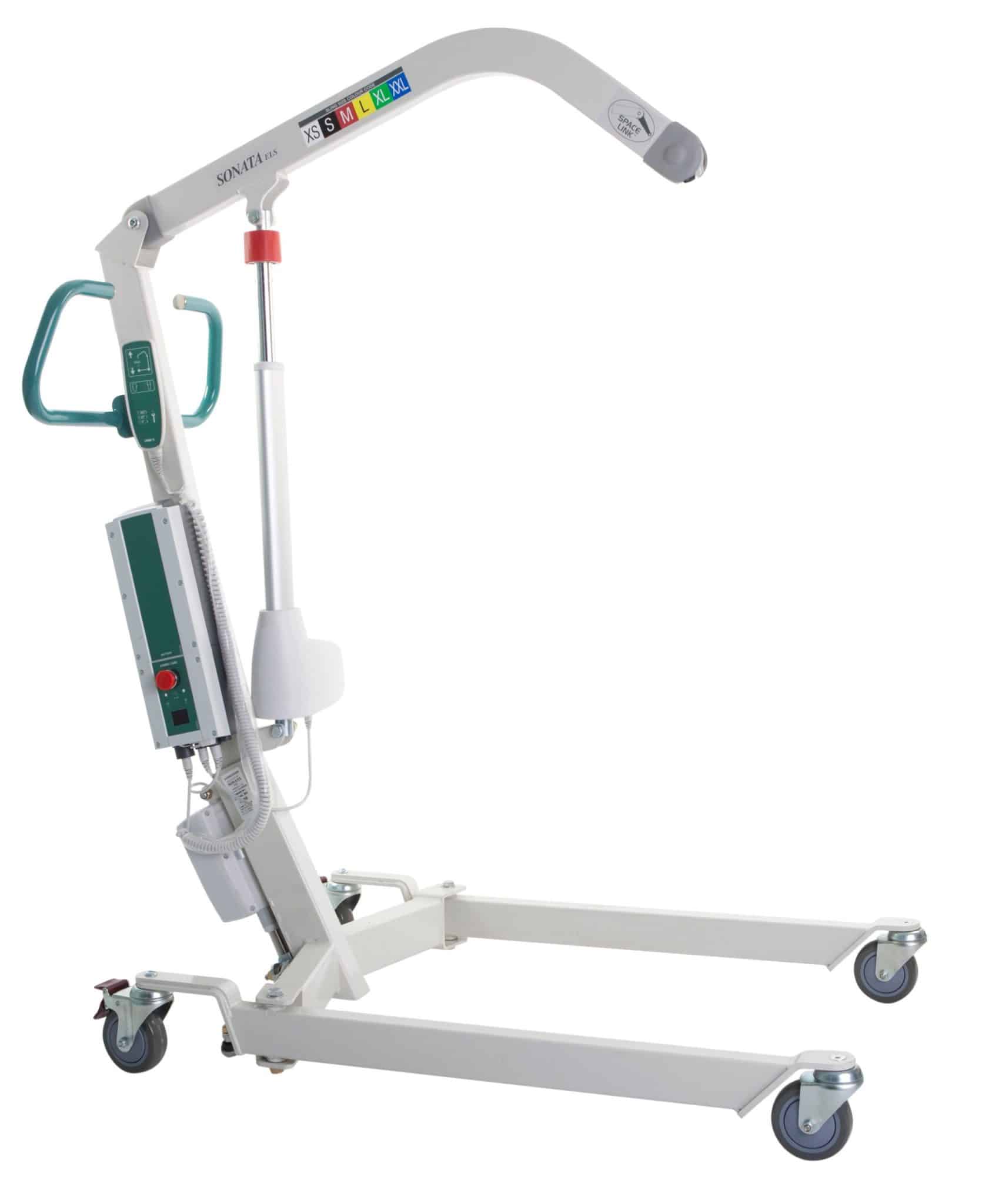

• The Duracare Sonata ELS is a lightweight compact mobile patient lifter with innovative and ergonomic design
• Easy to use everyday lifter
• Offers an outstanding lift capacity in a small patient hoist
• The Sonata ELS offers all the versatility of the original Sonata, with the added advantage of Electric Leg Spread
• This allows for ease of lifter leg adjustment on carpeted surfaces and/or with the heavier client on board
• Featuring Linak Jumbo Care advanced diagnostic control system
• Powered by LA44 European Standards compatible linear actuator

Specifications

• Base Length: 1100mm

• External Base Width Closed: 670mm

• External Base Width Open: 1075mm

• Internal Base Width Closed: 570mm

• Internal Base Width Open: 970mm

• Base Width Adjustment: Electric

• Under Bed Clearance: 130mm

• Minimum Height Yoke: 400mm

• Maximum Height Yoke: 1735mm

• Average Lift Range: 880mm

• Lifter Weight: 41kg

• Minimum Storage Height: 1250mm

• Under Base Height: 55mm

• Maximum Hoist Reach: 865mm

• Minimum Hoist Reach: 515mm

• Hoist Reach at Maximum Height: 515mm

• Mass of Heaviest Part: 21kg
• ​Maximum User Weight: 150kg

Yoke Spreader Bar not included, see options below:

• Allegro Standard Yoke Spreader Bar
• Allegro Standard Yoke with Integrated Weigh Scale Spreader Bar
• Allegro Tri Hook Yoke Spreader Bar
• Allegro 4 Point Yoke Spreader Bar
