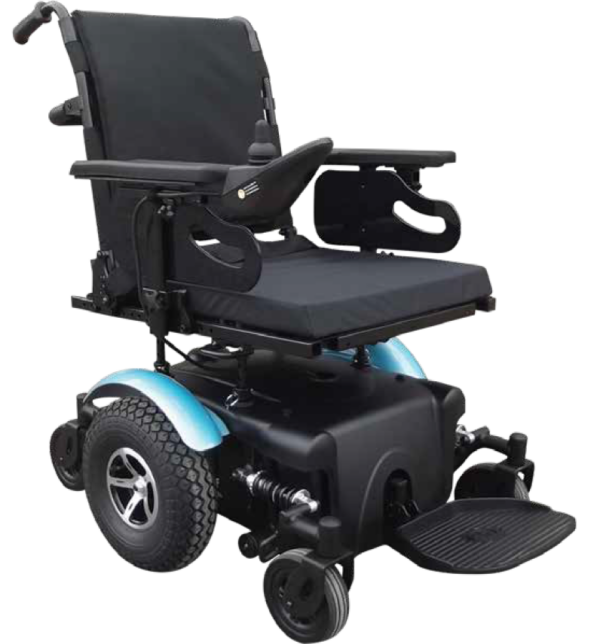

Mid-wheel drive design offers outstanding manoeuvrability in tight, compact spaces and the superior adjustable suspension design delivers a smooth and stable ride both indoors and outdoors, even over tough terrain
Patented obstacle climbing suspension that works
Dual in-line motors for enhanced efficiency, torque, range, and performance
Height & depth adjustable armrests
Height adjustable four post seats, with width & depth adjustment (R601)
After market cushions & backrests can be easily fitted to the seat
204 kg weight capacity
Available in a number of vibrant new colours – Red, Silver, Pearl Gold, Charcoal, NV Green, Kite Blue
Crash tested tie down points
Other options available are head rest, rear attendant controls, optional leg rests
Specifications
Overall Dimension : A x B x C 90x 69 x 100cm / 35 x
27 x 39in
Seat Dimension : D x E x F 46-56 x 46-56 x 46cm /
18-22 x 18-22 x 18in
Seat Height from Ground : G 44-49cm / 17-19in
Seat Height from Deck : H 32-37cm / 12.5-14.5in
Max Speed 8kph / 5mph
Range 32km / 20mi.
Turn Radius 53cm / 21”
Ground clearance 5.6cm / 2.2”
Motor DC24V, 200W(Rating) / 575W(Max)
Controller PG VR2 50A
Battery 12V / 55-62A/H x 2pcs
Charger 5A off-board Gradient 8°
Caster front: 6” x 2” PU tire ; rear: 6” x 2” solid tire
